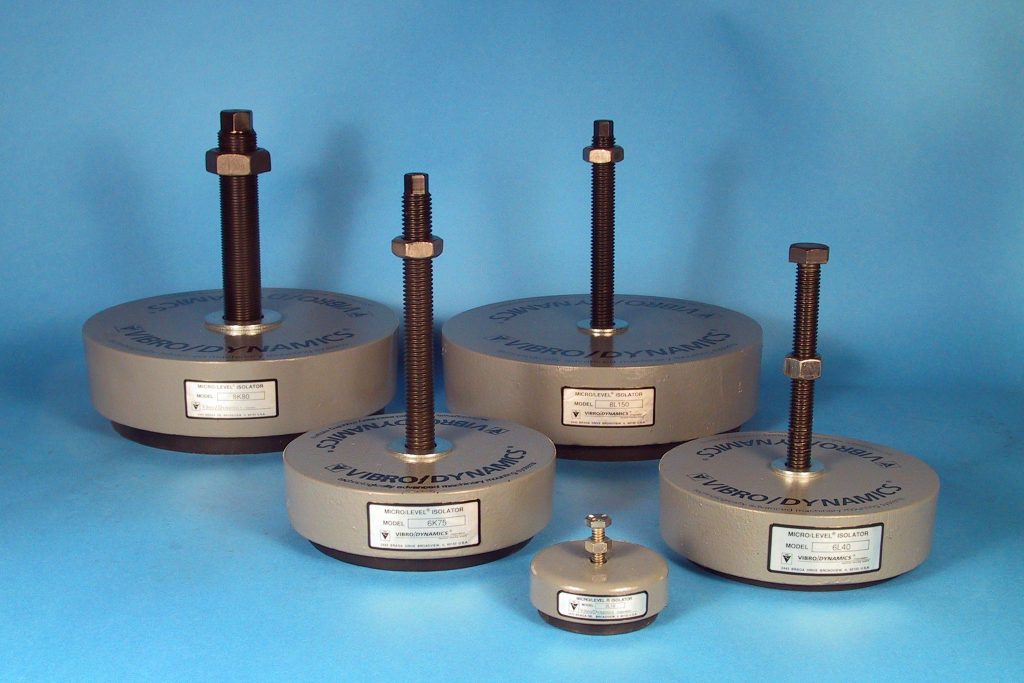

Micro/Level Elastomer Isolators 6 to 8 series

6 and 8 series vibration isolators are ideal for small machine tool and punch press applications.

6M and 8M models are designed for machines with slight unbalanced forces, low speed presses, and inspection machines.

6L and 8L models are designed for machines with moderate unbalanced forces, medium speed presses and precision machine tools.

8L and 8K  models are designed for machines with significant unbalanced forces, high speed presses, die cast and injection molding machines.

Leveling screws are available in various lengths and diameters to fit all types of machine bases.

Documentation

General Press Request for Quote Form General Press Request for Quote Form

Group Created with Sketch.

Request for quote form for general use small to medium (up to 500T capacity) presses running less than 250 SPM.

High Speed Press RFQ High Speed Press Request for Quote Form

Group Created with Sketch.

Use this form for presses running faster than 250 SPM.

M/L-646 M/L-646 Instructions for Preparation of Foundation and Machine Feet for Placement of Isolators

Group Created with Sketch.

INSTRUCTIONS FOR PREPARATION OF FOUNDATION SURFACE AND MACHINE FEET FOR THE PLACEMENT POSITIONING AND ADJUSTMENT OF VIBRO/DYNAMICS® ISOLATORS

6-26 series screw chart 6-26 series screw chart

Group Created with Sketch.

Leveling Screws Lengths based on Foot thickness for Micro/Level 6-26 series. Leveling screw dimensional specifications.
